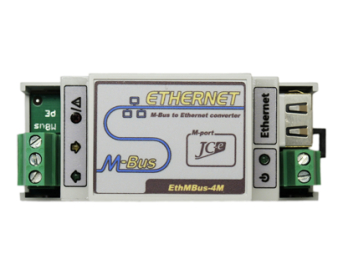

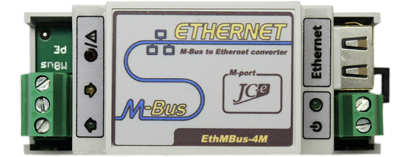

Converter for SMART metering

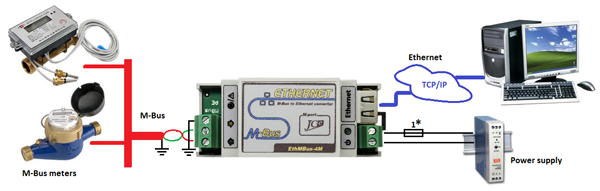

Remote communication with M-Bus meters using the Ethernet network in industry and building automation. The converter works as a transparent gateway for the transmission of M-Bus messages using TCP or UDP Ethernet protocols.

Meter data processing. The converter works as a server in the Smart M-Bus mode. It communicates with the M-bus meters independently, processes their data and stores them in its own memory.
The meter data is simultaneously available in form of:

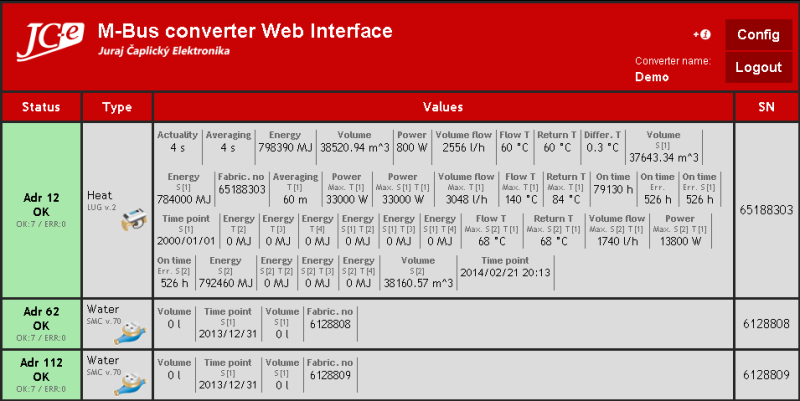

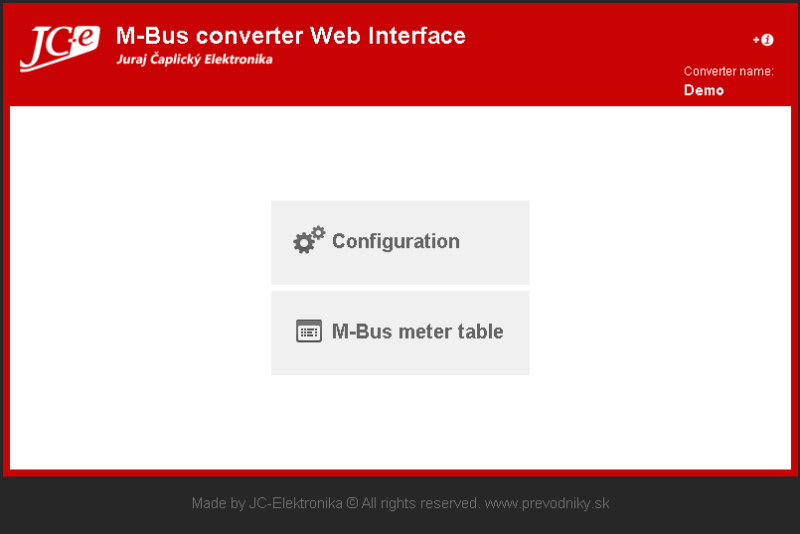

• table on a webpage
• xml, xml(REST) and csv export
• M-Bus protocol communication
• e-mail with attached xml, csv exports
Main characteristics

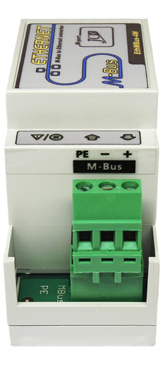

M-Bus port
• Connection of 1 to 4 M-Bus slave devices.
The most commonly used are heat, water, gas and electricity consumption meters.
• Surge protection guaranteeing superior durability against overvoltage.
• Current protection against overload and short circuit on the communication line with
LED status indication.
Power supply
• Wide range of DC power supply voltage 8-28V.
• Overvoltage protection with LED indication of power supply.

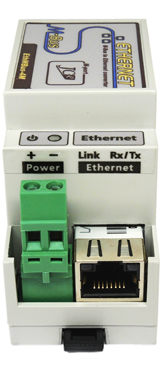

Ethernet
• TCP, UDP protocols and virtual COM port software.
• 10/100BASE-TX ethernet port, RJ45 connector.
Mechanical construction
• Plastic box with mounting on 35 mm DIN rail.

Main software characteristics

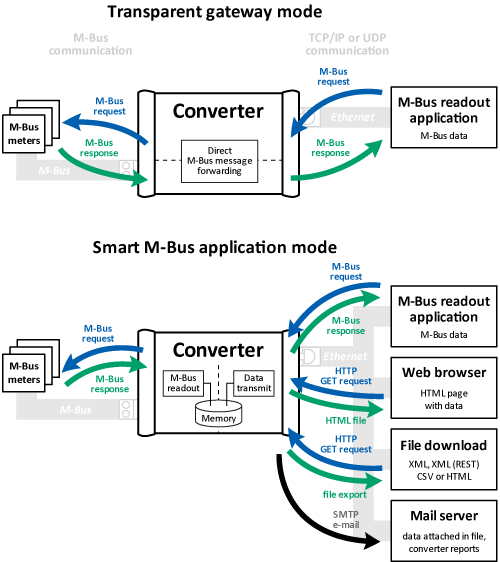

Transparent gateway mode:
• TCP/IP connection
- server or client mode
- backup IP addresses for connection
- connection to a web address (DNS)
• UDP connection

Smart M-Bus application mode:
• web page with meter data
• xml, xml(REST), csv exports
• e-mails with exports and service information

Guarantee of quality

• Each converter passes through several functional electrical tests during the production.
Additionally a communication test is performed after final assembly.
• EMC certification in an accredited laboratory for industrial environment.
• Solid design and construction based on many years practical experience.

Parameters summary

Number of devices that can be connected : 1 to 4 SLAVE devices
Baud rate : 300 - 9600 bps
Surge protection: M-Bus, power port
Current fuse & electronic protection: M-Bus, power port
Galvanic separation of M-Bus port: from power, Ethernet
Power: DC 8-28V
Power consumption: 1.3 to 1.9W (depends on load)
Operating temperature range: -20°C to 50°C
Dimensions: 58 x 36 x 95mm
