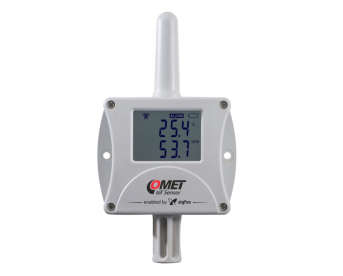

The device measures the temperature and humidity from the built-in internal sensor. It is characterized by a simple compact design with the possibility of installation directly into the measured space. The sensor can be used with a suitable sensor cap even in more demanding conditions.

The measured values are sent in an adjustable time interval (10 min to 24 h) by radio transmission in the Sigfox network to the COMET Cloud, from which the user can view them using a personal computer or mobile device.

The instrument can monitor up to 2 alarm limits of the measured variable. Exceeding these limits is indicated by sending an emergency message. COMET Cloud transmits this alarm message via e-mail to the selected user. The device is suitable for applications that tolerate the delay of information delivered by Sigfox (max. 10 min).


wireless transmission of measured values and alarm status
battery power with low battery indication (battery life 4 months to 7 years)
external power with optional accessories
remote setting of the device from COMET Cloud (maximum once a day)
traceable calibration certificate in accordance with EN ISO / IEC 17025

Operating temperature -30 to +60 °C
Channels internal temperature and humidity sensor
Message transmission interval adjustable 10 minutes, 20 minutes, 30 minutes,1 hour, 3 hours, 6 hours, 12 hours, 24 hours
Alarm message sending interval 10 minutes
Operating frequency 868 MHz
Maximum transmission power 25mW
Sigfox radiation class 0U
Radio configuration zone RCZ1 (operation is possible in Europe, Iran, Oman, and South Africa)
The typical range of the transmitter is 50 km in the field, 3 km in the city
Power Lithium battery 3.6 V, AA size
Protection class IP65 electronics, IP40 sensors
Dimensions 126 x 89 x 40mm
Weight (including batteries) 150g
Warranty 3 years

Technical data

Measured value
Relative humidity
Counted values (dew point…)
Measuring range -30 to +60 °C
Accuracy ±0.4 °C
Resolution 0.1 °C
Response time t90 of temperature measurement (temperature step 20°C, airflow approximately 1m/s) 10 minutes
Measuring range 0 to 100 % RH
Accuracy ±1.8 % RH from 0 to 90 % at 23 °C
Resolution 0.1% RH
Measuring range -60 to +60 °C
Accuracy ±1.5 °C at ambient temperature T <25 °C and RH >30 %
Resolution 0.1 °C
