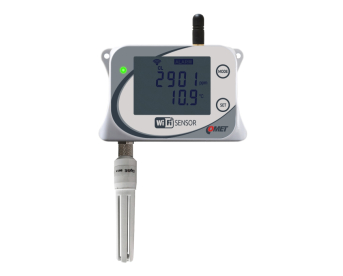

Sensors with a WiFi interface are designed to measure the temperature, relative humidity, CO2, and atmospheric pressure with a connected probe (included in delivery).

Communication with the sensor is done via a wireless WiFi network. The device allows sending measured values ​​to the online COMET Cloud (with the shortest interval of 5 minutes) or into COMET Database. The values ​​can be displayed on integrated web pages and provided to third-party systems using the Modbus TCP, JSON, and XML. The measured values ​​are displayed on the LCD display.

The device continuously evaluates the alarm limits of the measured values ​​and in case of exceeding them, it can send an e-mail or inform by means of acoustic or optical signaling. Two-alarm limits are supported for each measurement channel.

The main advantage of sensors with WiFi interface is the simplicity of deployment in places where WiFi infrastructure is already available. Just place the sensor in the desired location and connect it to the WiFi network. WiFi sensor in conjunction with COMET Cloud offers a comprehensive solution for monitoring and alarm without the need for a server solution on the part of the user. If necessary, however, the sensor can also be connected to third-party systems, either using the Modbus TCP protocol or by sending JSON data to an HTTP server. Sensors allow providing values via XML and JSON using HTTP GET requests as well.

Thanks to these unique features, the WiFi sensor will find applications and a wide range of application areas.

code W4710
Technical data

> Temperature
> Relative humidity
> Counted values (dew point…)
> CO2
> Atmospheric pressure

> Measuring range -30 to +60 °C
> Accuracy ±0.4 °C
> Resolution 0.1 °C

> Measuring range 0 to 95 % RH
> Accuracy ±1.8 % RH from 0 to 90 % at 23 °C
> Resolution 0.1% RH

> Measuring range -60 to +60 °C
> Accuracy ±1.5 °C at ambient temperature T < 25 °C and RH > 30 %
> Resolution 0.1 °C

> Measuring range 0 to 5000 ppm
> Accuracy ±(50ppm +3% from reading) at 25°C and 1013hPa
> Resolution 1 ppm

> Measuring range 700 to 1100 hPa
> Accuracy ±1.3 hPa at 23 °C
> Resolution 0.1 hPa


> Operating temperature -30 to +60 °C
> Channels sensor of temperature, humidity sensor, CO2, and atmospheric pressure
> Measuring interval 1 s
> Sending interval to COMET Cloud adjustable 5 minutes to 12 hours
> Communication protocols HTTP(S), SMTP, ModbusTCP, HTTP POST, HTTP GET (JSON, XML)
> Alarm signalization e-mail, acoustic, LED
> Power 5.0 to 5.4 VDC; consumption 150 mA (max. 500 mA); USB-C connector
> Radio section frequency: 2.4 GHz; max. transmit power: 18 dBm; standard: IEEE 802.11 b/g/n
> Protection class IP30
> Dimensions 156 x 93 x 32 mm
> Weight 125 g
> Warranty 3 years
