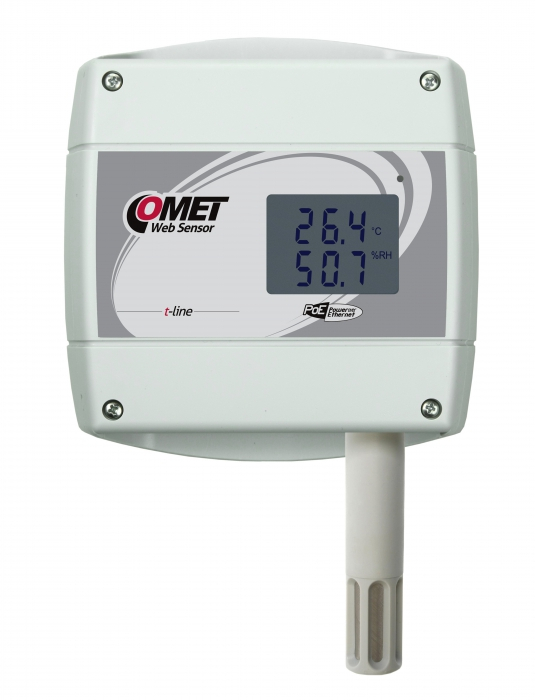

PoE Web Sensor with built-in relative humidity and temperature sensors. Can serve as a weather sensor.
High precision capacitive polymer sensor ensures excellent long-term calibration stability and ultimate accuracy. Dual-line LCD is an advantage. The power over Ethernet feature according to IEEE 802.3af is supported. Measured values are also converted to other humidity interpretations: dew point temperature, absolute humidity, specific humidity, mixing ratio, and specific enthalpy.
Processing and analysis of measured data:
online in COMET Cloud
COMET Database software
integration into 3-party systems
MEASURED VALUE
Temperature
Relative humidity
Counted values (dew point…)
TEMPERATURE SENSOR
Measuring range -20 to +60 °C
Accuracy ±0.6 °C
Resolution 0.1 °C
HUMIDITY SENSOR
Measuring range 0 to 100 % RH
Accuracy ±2.5 % RH from 5 to 95 % at 23 °C
Resolution 0.1% RH
DEW POINT
Measuring range -60 to +80 °C
Accuracy ±1.5 °C at ambient temperature T <25 °C and RH >30 %
Resolution 0.1 °C
Operating temperature -20 to +60 °C
Channels internal temperature and humidity sensor
Counted values dew point, absolute humidity, specific humidity, mixing ratio, specific enthalpy
Output Ethernet
Range of humidity sensor temperature compensation all temperature range
Measuring interval 2 s
Available temperature units degrees Celsius, degrees Fahrenheit
Communication protocol WWW, ModbusTCP, SNMPv1, SOAP, XML
Alarm protocols E-mail, SNMP Trap, Syslog
Power Power over Ethernet according to IEEE 802.3af or 5Vdc
Protection class IP30
Dimensions 136 x 201 x 45 mm; stem length 75 mm
Weight approx. 360 g
Warranty 3 years
