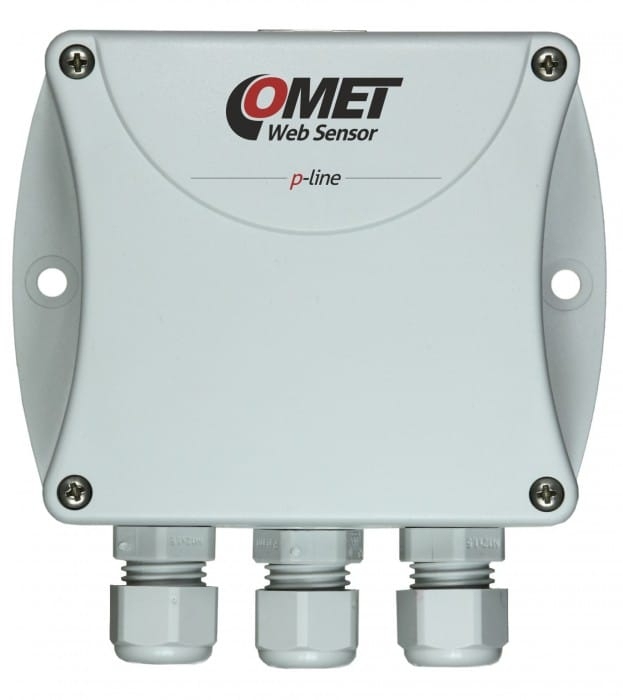

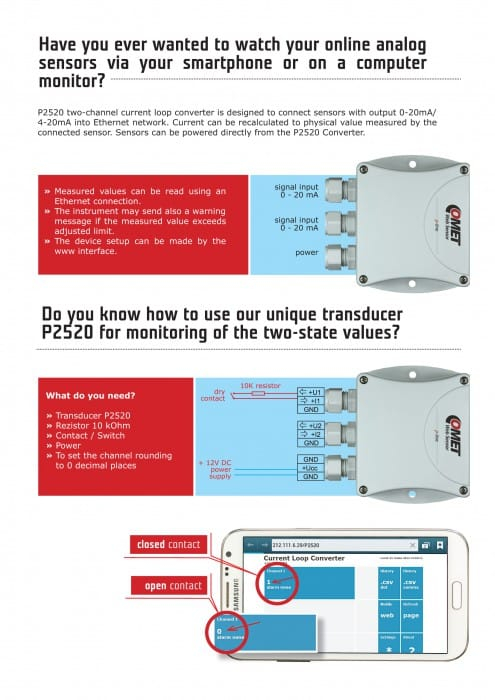

Converter Web Sensor P2520 is designed for the connection of two sensors with current output into the Ethernet network. The measured
current (0-20mA or 4-20mA) can be converted to the physical quantity that is measured by the connected sensor. The converter is galvanically isolated from the Ethernet communication lines, current inputs and power supply are not galvanically isolated.
Technical data

Measured value
Accuracy ±0.1% FS od 0 °C do +50 °C
±0.3% FS od -30 °C do +80 °C
Resolution 1 µA
A/D converter resolution 24bit sigma-delta
Input resistance 20 Ω
Measuring interval 1 s


Operating temperature -30 to +80 °C
Channels 2x proudový vstup
Output Ethernet
Measuring interval 1 s
Communication protocol WWW, ModbusTCP, SNMPv1, SOAP, XML
Alarm protocols E-mail, SNMP Trap, Syslog
Power 9-30 Vdc
Protection class IP30
Dimensions 88 x 126 x 39,5 mm
Weight approx. 150 g
Warranty 3 years
