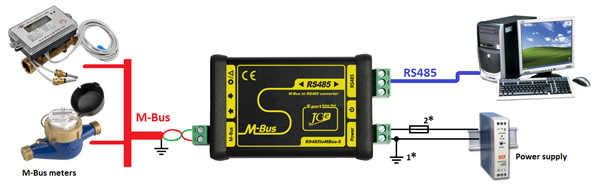

Remote data retrieval from M-Bus devices via the RS485 serial communication line in industry and building automation. The most frequently used M-Bus slave devices are heat, water and electricity consumption meters.
Description

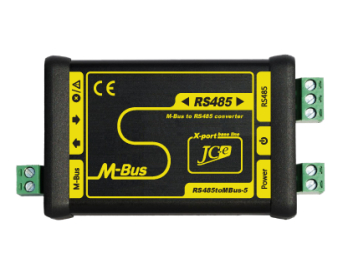

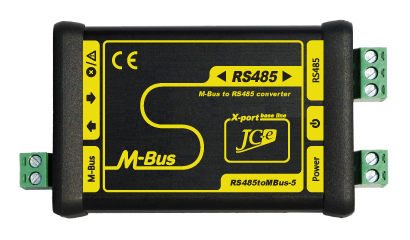

The RS485toMBus-5 converter provides a RS485 to M-Bus interface conversion. There is no change in the content of the messages or communication speed during the conversion. The maximum number of M-Bus slave devices that can be connected is five.

Main characteristics

M-Bus port
• Connection of 1 to 5 M-Bus slave devices.
• Surge protection guaranteeing superior durability against overvoltage.
• Current protection against overload and short circuit on the communication line with LED status indication.
Power supply
• Wide range of power supply voltages. DC 9-33V or AC 10-24V.
• Protection against overvoltage and resettable fuse with LED indication of power supply.
RS485
• Signals: Data+, Data- and GND
• Protections against overvoltage.
• Selectable termination of the line with a 120R resitor.
• Galvanic separation from the power supply and also the M-Bus line.
Mechanical construction
• Aluminium box with mounting on 35 mm DIN rail.

Guarantee of quality

• Each converter passes through several functional electrical tests during the production.
Additionally a communication test is performed after final assembly.
• EMC certification in an accredited laboratory for industrial environment.
• Solid design and construction based on many years practical experience.

Parameters summary

Number of devices that can be connected: 1 to 5 SLAVE devices
Baud rate: 300 - 9600 bps
Surge protection: M-Bus, power port
Current fuse & electronic protection: M-Bus, power port
Galvanic separation of M-Bus port: from power, RS485
Power: DC 9-34V, AC 8-24V
Power consumption: 0.4W to 1.1W (depends on load)
Operating temperature range: -40°C to 70°C

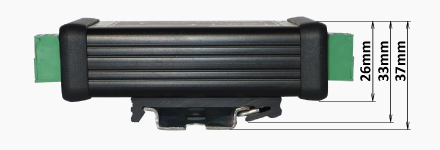

Dimensions: 33 x 57 x 106 mm
