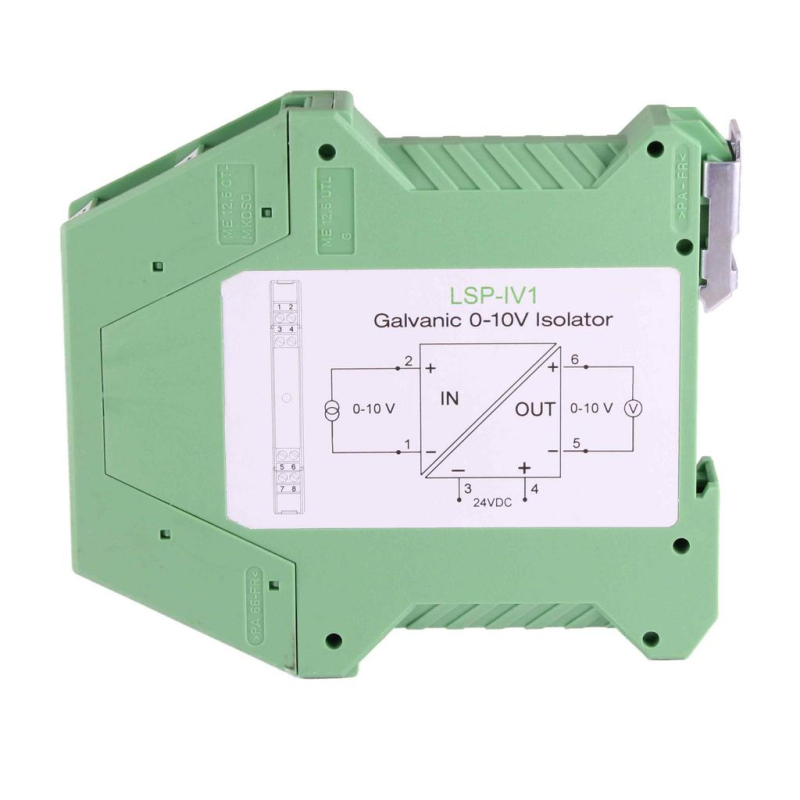

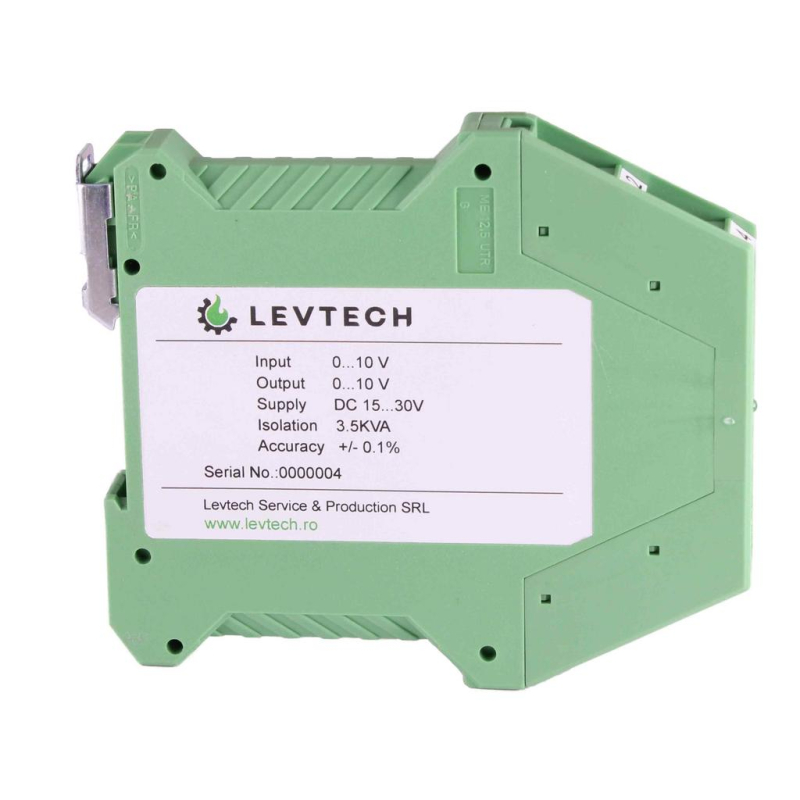

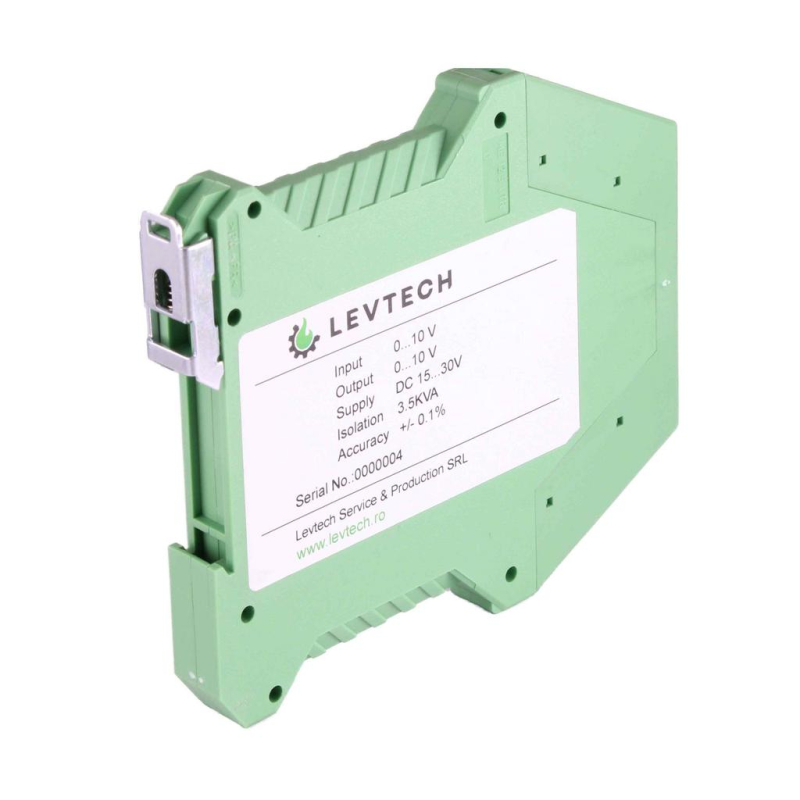

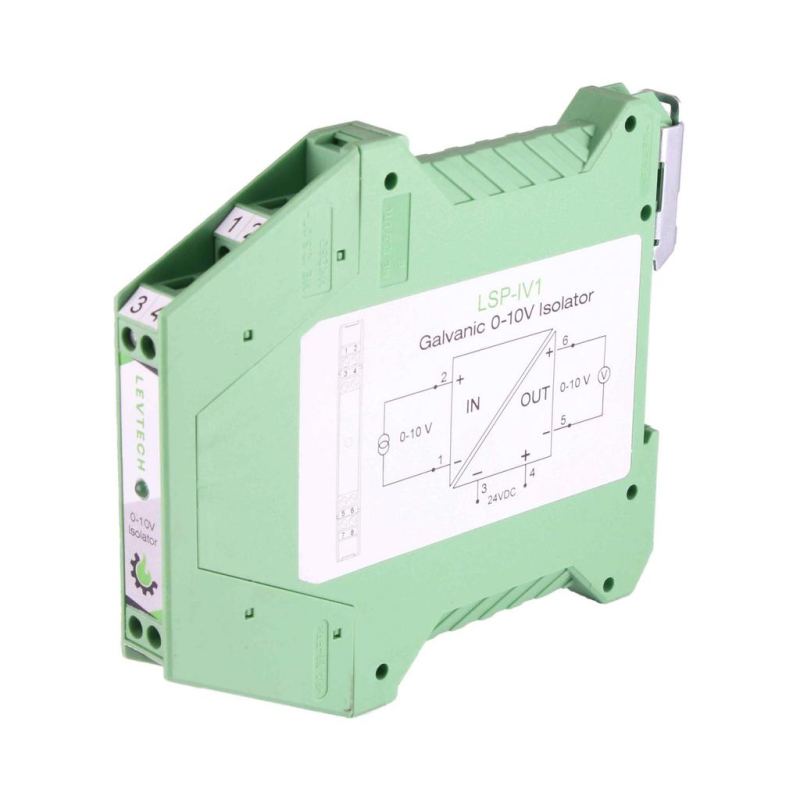

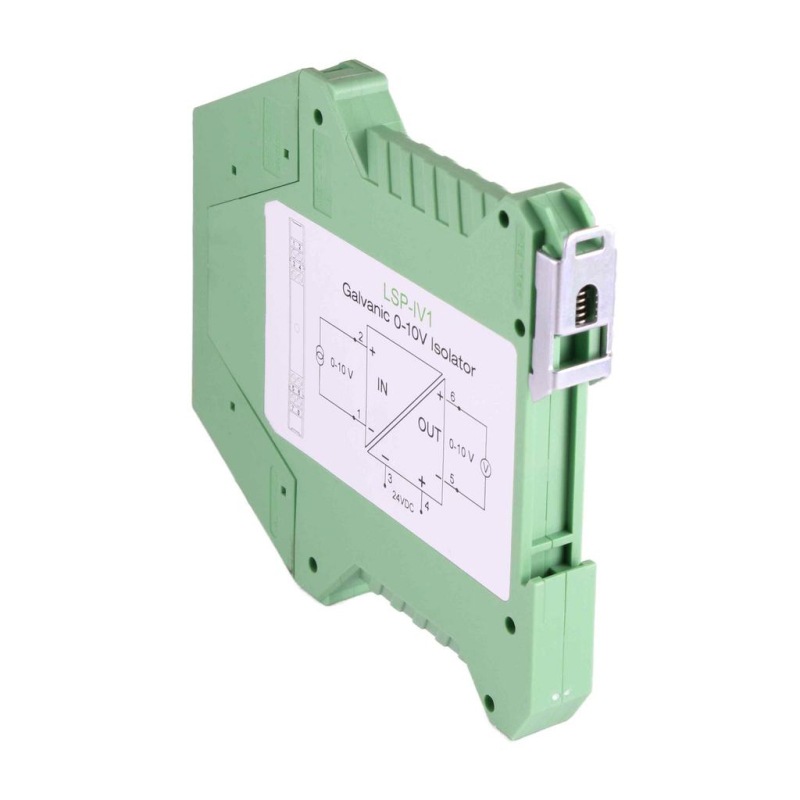

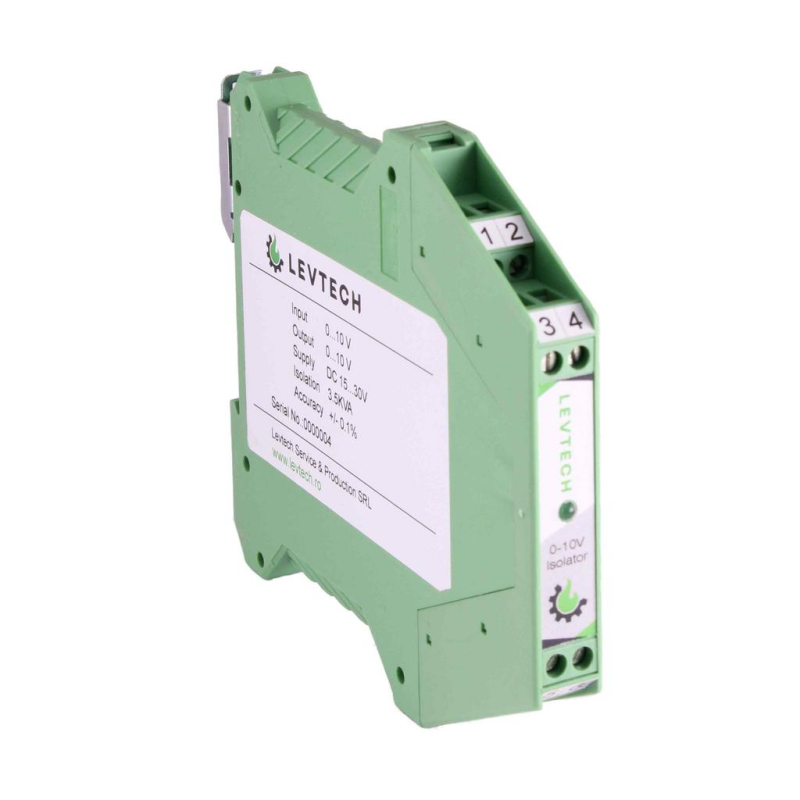

The LSP-IV1 isolator is designed to make galvanic isolation between the transmitter and the processing unit (PLC). Whit its 2 point galvanic isolation, it separates the input and the output from each other. This instrument is suitable for any industrial application where 0-10V analog signal is used. It reduces the impact of interference and ground potential differences. The module ensures 3500VDC isolation, and it is very cost effective.

Features
• Three way isolated
• 3500kV isolation

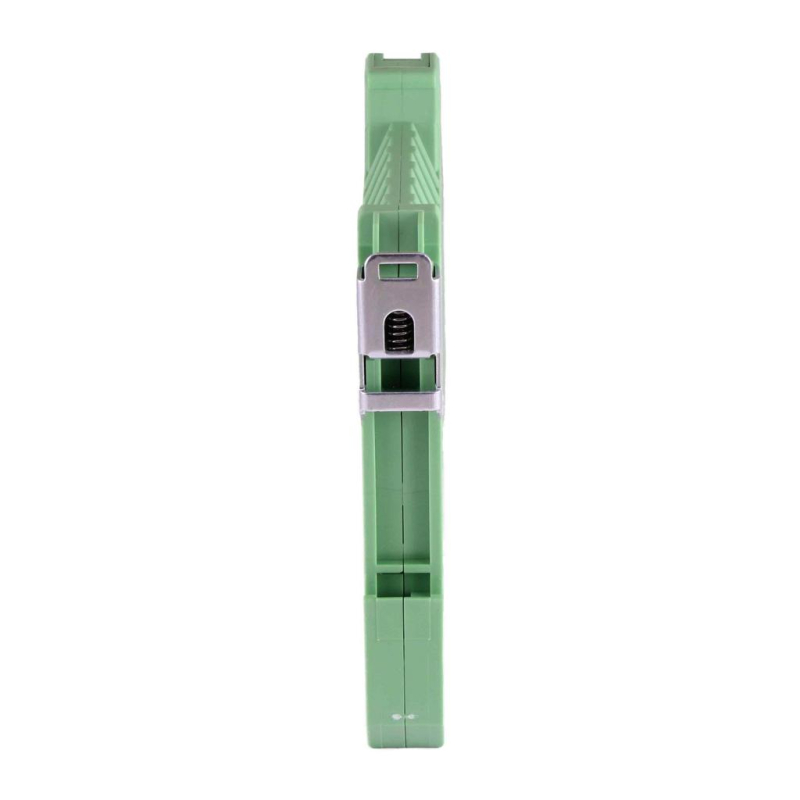

• TS-35 DIN rail mounting
• +/-0.1% accuracy
• Ip40 case
• Screw terminals
• Power LED
• 0-10V analog output
• Supply voltage 24VDC
• Made in EU
