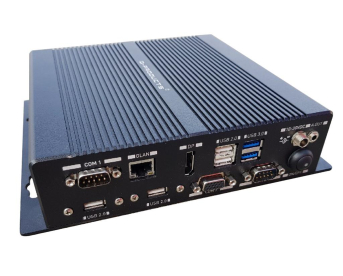

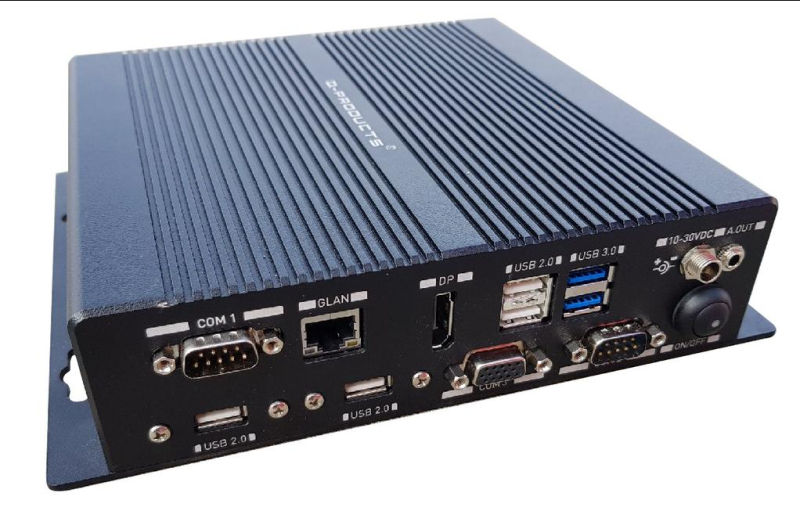

_industrial fanless embedded computer
_very low power < 15W
_24/7 operation
_slim design
_more USB and serial ports on chassis
_CNC milled chassis

CPU: Intel Celeron N2930 quad core
Chipset: Intel Bay Trail SOC
Memory: 4GB DDR3L
Hard drive/SSD: 250GB Solid state drive
Video Support: DP max. 1920x1080 FullHD, Option - 2nd output VGA max. 1920x1080 FullHD
Interfaces: Gigabit LAN Intel, 2 x USB 3.0, 4 x USB 2.0, 4 x RS232
Conformity: CE, FCC
Protection class: IP40
Size (W x L x H in mm): 217 x 189 x 35
Weight: 1.2 kg
Housing: CNC milled Aluminium Alloy
Colour: RAL 7016 (anthracit grey) std. RAL xxxx (option)
Noise level: 0dB(A)
Operating temperature: -20°C to +70°C
MTBF: >100000 hrs.
Operating systems support: MS Windows 7, Windows 8, Windows 8.1,
Windows 10, Windows Embedded Standard 7, Windows Embedded Standard 8 / 8.1,
POSReady 7, Windows Embedded 8.1 Industry Pro Retail, Windows 10 IoT Enterprise LTSB & LTSC, Linux 2.6.x,3.x
Power: 10 - 30 VDC
